Home > Product > Rugged tablet
Application:
10 10 10

10" Android rugged tablet pc


Model No: F7R
Screen:10.1 inch
System: Android
CPU: RK3399
Frequency: Up to 1.8GHz
Resoltion: 800*1280
Storage: 4+64G
Dimensions:280×184×26.5mm
share:
  • Description
  • Specification
  • Accessories
  • Android Rugged Tablet PC

  • Key FeaturesIP67, 10.1" IPS + RK3399 + 4G +64G + WiFi   2.4G&5G Dual band + 1000Mbps + HDMI1.4 + RS-232(DB9)+ USB3.0
    System Physical Standard Configuration:
    TypeDetailsDescriptions
    Product   FormForm FactorIP67 Rugged Tablet PC
    Dimensions280×184×26.5mm
    Weight1.2KG
    LCDScreen Size10.1"
    Screen Resolution1200×1920 (IPS+FHD+600ANSI)
    800×1280 (IPS+HD+300ANSI)
    TPTouch Module G+G Multi-Touch
    Battery TypeRechargeable lithium polymer
    Capacity12000mAh/3.7V
    Working   TimeOver 8 hours (FHD local video display)
    System Hardware Configuration:
    TypeDetailsDescriptions
    CPUTypeRK3399  Dual-core Cortex-A72 +   Quad-core Cortex-A53
    SpeedUp to 1.8GHz
    GPUTypeMali-T864 GPU
    MemoryCapacity4GB
    StorageeMMC64GB
    SSD/
    SATA   2.5“ HDD/
    CameraFront 2M
    Rear 5M
    SpeakerBuilt-in8Ω/1W with water proof
    MicphoneBuilt-inYes
    G-sensorBuilt-inYes
    Network Connections:
    TypeDetailsDescriptions
    WIFIWIFI Module: Broadcom   AP6255/AP6256WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
    BluetoothBT Module: Broadcom   AP6255/AP6256Bluetooth4.0
    3G/4G LTEOptionalOptional with external small PCBA
    QR code ScannersOptionalOptional
    NFCOptionalOptional
    GPSBD2/GPSOptional
    FingerprinterCapacitive fingerprint   sensorOptional
    Ethernet NetworkRJ-451000Mbps Gigabit Lan
    Interface Configuration:
    TypeDetailsDescriptions
    USB   InterfaceUSB3.0×1pc
    USB2.0×2pcs (USB2.0 TypeA×1 +   Micro USB2.0 (Debug port)×1)
    SD / TF Card   readerTF Card reader×1pc (up to 128GB)
    SIM  Card SlotSIM Slot for 3G/4G LTEOptional
    Audio Jack 3.5mm standard×1pc
    HDMIMicro HDMI 1.4×1pc
    Video   output through HDMIUp to 4K

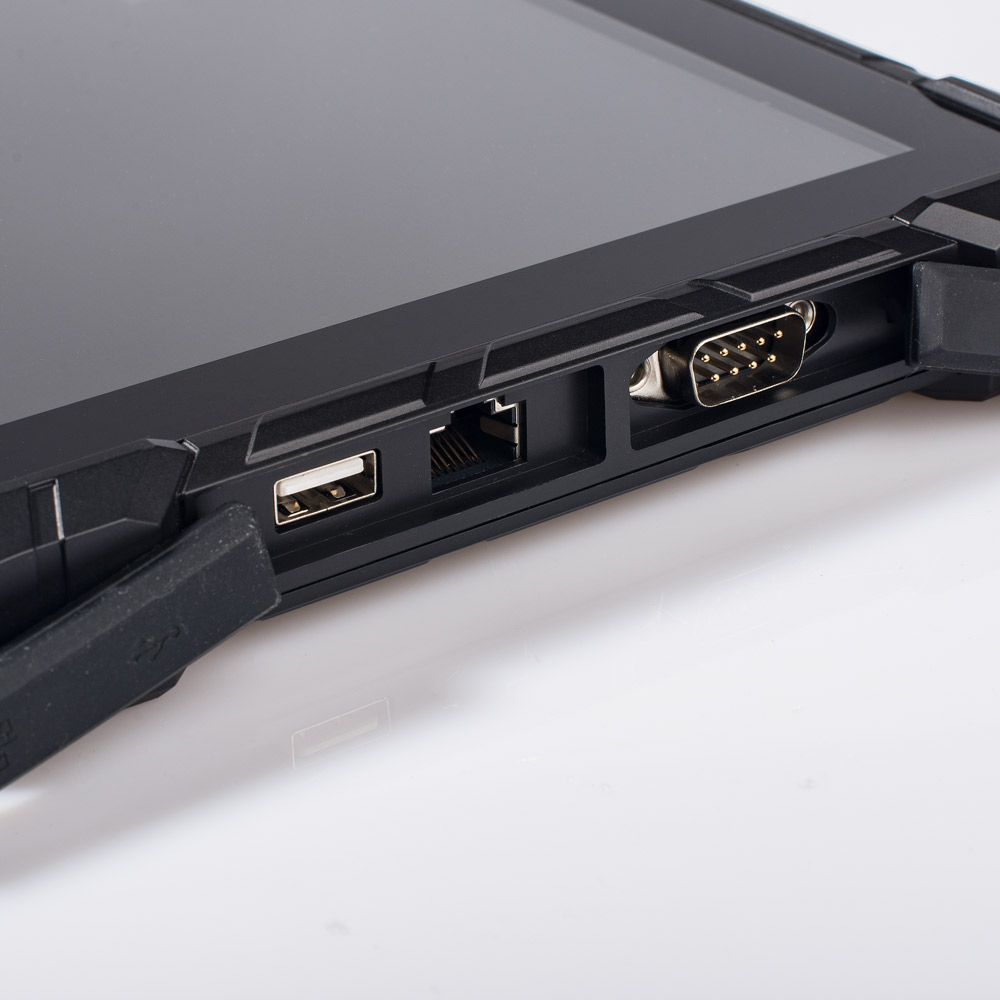

    COM PortDB9 (RS232)×1pc
    Button Switch:
    TypeDetailsDescriptions
    PowerOn/Off×1pc
    VolumeDown/UP×1pc
    CMOS ResetReset by Short Press/
    Main Accessories:
    TypeDetailsDescriptions
    Power adapterDC 12V/3A×1pc
    User's ManualUser's Manual×1pc
    Handle StrapsOptionalOptional
    Extension DockingUSB2.0×1pc ; DC IN × 1pcOptional
    Software Configuration:
     TypeDetailsDescriptions
    Wake up on LanWake up on Lan by RJ45/
    PXEPreboot Execution   Environment/
    Operating   SystemAndroid 7.1 or aboveYes
    LinuxTest by end user
    Environment:
    TemperatureOperation Temperature-10oC ~ 55oC (1080p or 4K local   video display)
    Storage   Temperature-20oC ~ 70oC  (Restore to Operation Temperature 2hr   before use)
    HumidityOprating Humidity35% ~ 80% relative humidity, Non-condensing
    Storage   Humidity20% ~ 93% relative humidity, Non-condensing
    Certification:
    IP67IP67 CertificationYes
    OtherOtherOptional


  • Rugged Tablet PCRugged Tablet PC
