Application:
10.1 inch Rugged Tablet PC Windows 10.1 inch Rugged Tablet PC Windows 10.1 inch Rugged Tablet PC Windows

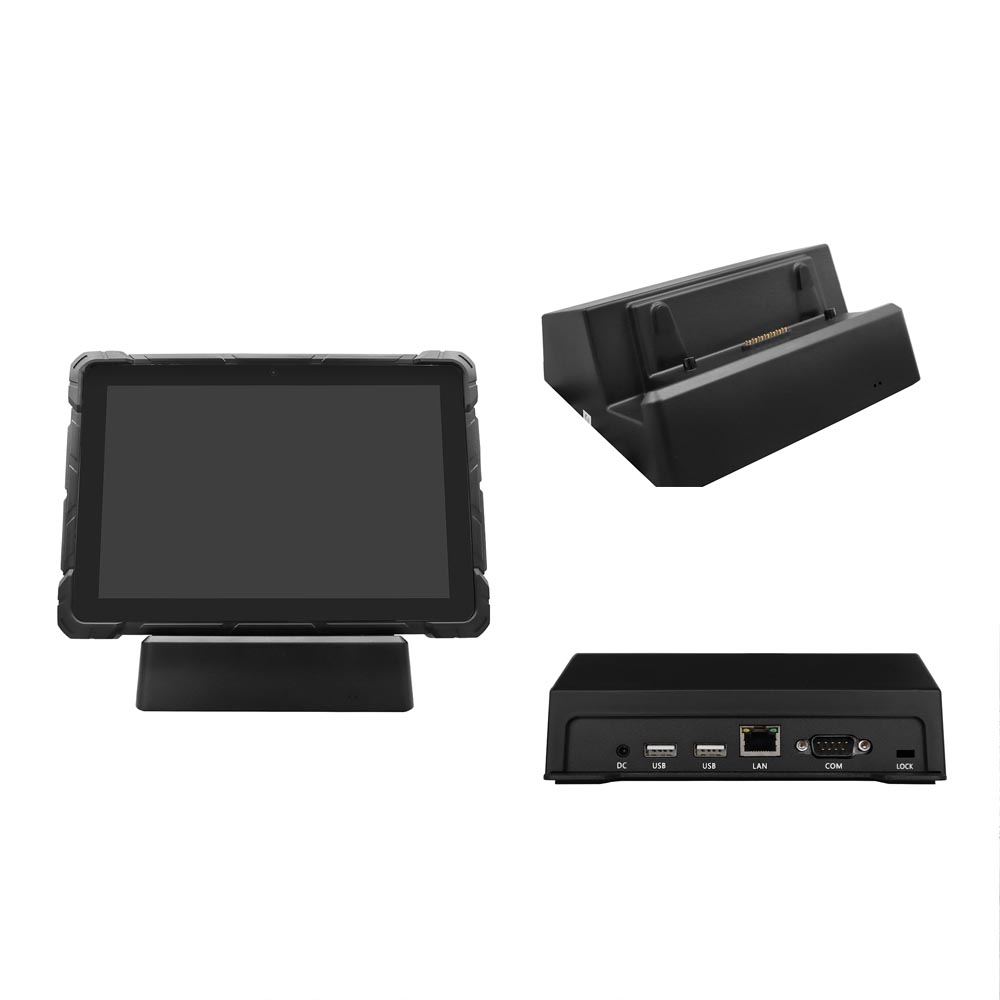

10.1 inch Rugged Tablet PC Windows


Model No.: F7G
8GB +128GB Windows Rugged tablet PC
CPU:Intel Gemini lake N4120
Resoution:800×1280 (IPS+HD+300ANSI)
Power adaptor: 12V, 3A
Certificate: IP67, CE RED, MIL-STD-810G
share:
  • Description
  • Specification
  • Accessories
  • Product Features:

    1. IP67 waterproof, shockproof, dustproof, anti-vibration, anti-crash, suitable for harsh environment. Can withstand moisture, extreme temperatures, drops, shocks, vibration, rain, dirt, mud, sand, water, altitude, humidity.

    2. Intel Gemini lake N4120 quad core powerful CPU , allows for high speed running of multiple tasks .

    3. With Type C((Video Out+Data+Power) interface, HDMI and the tablet display, can show three displays at the same time.

    4. Fanless design, can work 7 days 24 hours without stopping.

    5. Support TPM2.0, can encrypt your files

    6. Built with shockproof metal, can be anti-shock for 120cm height

    7. Easy to be detached SIM card slot

    8. Multi interfaces, RJ45, USB3.0, Type C 3.1, RS232, HD-MI, TF card reader, SIM card slot

    9. Dual band wifi, 2.4G&5G, and 1000Mbps Gigabit Lan to maintain stable network

    10. Windows 10 professional operation system, 8GB system memory, 128GB storage drive. Up to 512GB expandable capacity through micro SD or PCIe.

    11. With 8000mAh/7.6V rechargeable battery, dual cameras, BT4.2

    12. Support docking charge, 4G LTE, GPS, NFC, RFID, Fingerprint, QR code scanning

    13. FullHD IPS, 1200*800 300ANSI, sunlight readable

    14. Low power, DC 12V/3A

    15. 3.5mm standard headphone+Microphone

    IP67 Rugged Tablet PC

  • System Physical Standard Configuration:
    TypeDetailsDescriptions
    Product   FormForm FactorIP67 Rugged Tablet PC
    Dimensions280×184×26.5mm
    Weight1.15KG
    LCDScreen Size10.1"
    Screen   Resolution800×1280 (IPS+HD+300ANSI)    (Standard)
    1920×1200 (IPS+FHD+600ANSI)
    TPTouch Module G+G Multi-Touch (10 Points)
    Battery TypeRechargeable lithium polymer
    Capacity8000mAh/7.6V
    Working   TimeOver 8 hours (FHD local video display)
    System Hardware Configuration:
    TypeDetailsDescriptions
    CPUTypeIntel Gemini lake N4120 (Quad-Core)
    Speed1.1GHz ~ 2.6GHz (N4120)
    GPUTypeIntel UHD 600 Graphics
    MemoryCapacity8GB LPDDR4
    StorageeMMC128GB
    SSDOptional (Mini PCI-E slot)
    CameraFront 2M
    Rear 5M
    SpeakerBuilt-in8Ω/1W*2pcs with water proof
    MicphoneBuilt-inYes
    G-sensorBuilt-inYes
    Light-sensorBuilt-inOptional
    Network Connections:
    TypeDetailsDescriptions
    WIFIWIFI Module: Intel AC3165WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
    BluetoothBT Module: Intel AC3165Bluetooth4.2
    4G LTEOptionalOptional (Mini PCI-E slot)
    QR code ScannersStandardOptional
    GPSBD2/GPS/Glonass (Choose two of the three)Optional
    NFCOptionalOptional
    FingerprinterOptionalOptional
    RFIDUHF bandOptional
    Ethernet NetworkRJ-451000Mbps Gigabit Lan
    Interface Configuration:
    TypeDetailsDescriptions
    Type-CType-C 3.1×1pc
    USB InterfaceUSB3.0×2pcs
    SD / TF Card   readerTF Card reader×1pc (up to 512GB)
    SIM  Card SlotSIM Slot for 4G LTE×1pc
    Audio Jack 3.5mm standard   headphone+Microphone×1pc
    HDMIMicro HDMI 2.0×1pc (Output 4K@60fps UHD video)
    COM PortDB9 (RS232)×1pc
    Button Switch:
    TypeDetailsDescriptions
    PowerOn/Off×1pc
    VolumeDown/UP×1pc
    HotKeyHot Key for QR   Scanner ×1pc
    Forced outagePower restart when push   restart button×1pc
    Main Accessories:
    TypeDetailsDescriptions
    Power adapterDC 12V/3A×1pc
    User's ManualUser's Manual×1pc
    Handle StrapsHandle straps and hand   claspingOptional
    Extension DockingUSB2.0; Power   charging;  RJ45; RS232Optional
    Vehicle BracketUSB2.0; Power   charging;  RJ45; RS232Optional
    Software Configuration:
     TypeDetailsDescriptions
    Power on FunctionBy Power Button or Auto   Power onOptional
    Wake up on LanWake up on Lan by RJ45Yes
    PXEPreboot Execution   EnvironmentYes
    SecurityTPM2.0 (Hardware)   containedOptional
    Operating SystemWindows 10 Pro or aboveYes (Officoal Windows license is Optional)
    Environment:
    TemperatureOperation Temperature-10oC ~ 55oC (1080p or 4K local   video display)
    Storage   Temperature-20oC ~ 70oC  (Restore to Operation Temperature 2hr   before use)
    HumidityOprating Humidity35% ~ 80% relative humidity, Non-condensing
    Storage   Humidity20% ~ 93% relative humidity, Non-condensing
    Certification:
    IP67IP67 CertificationYes
    CECE-RedYes
    MIL-STD-810GMatch the military   standard of USAYes
