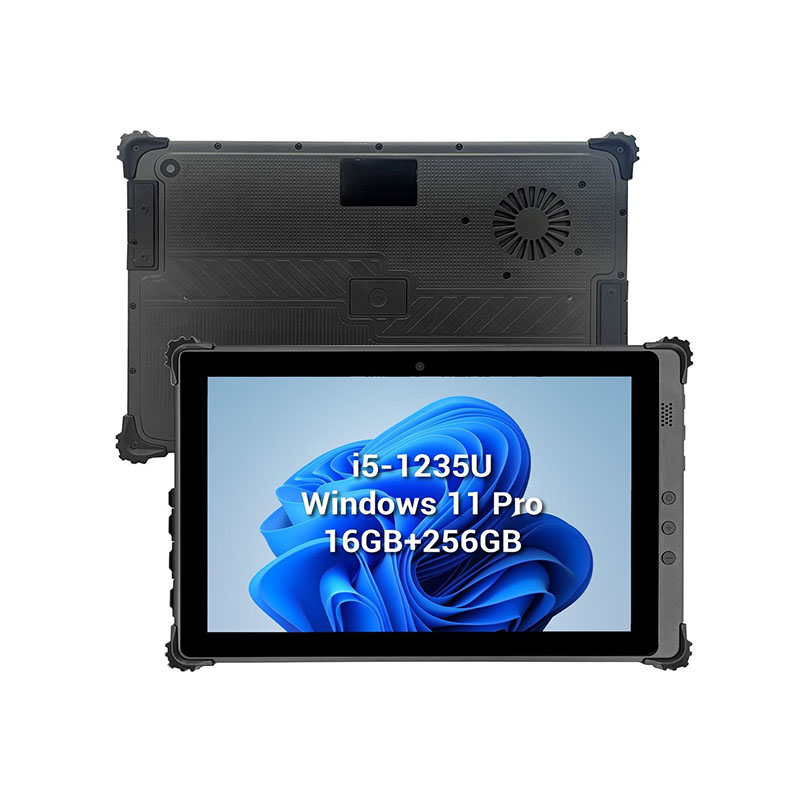

| System Physical Standard Configuration:F9M CPU I5-1235U DDR 16GB SSD 256GB WIFI6 windows 11 |
| Type | Details | Descriptions |

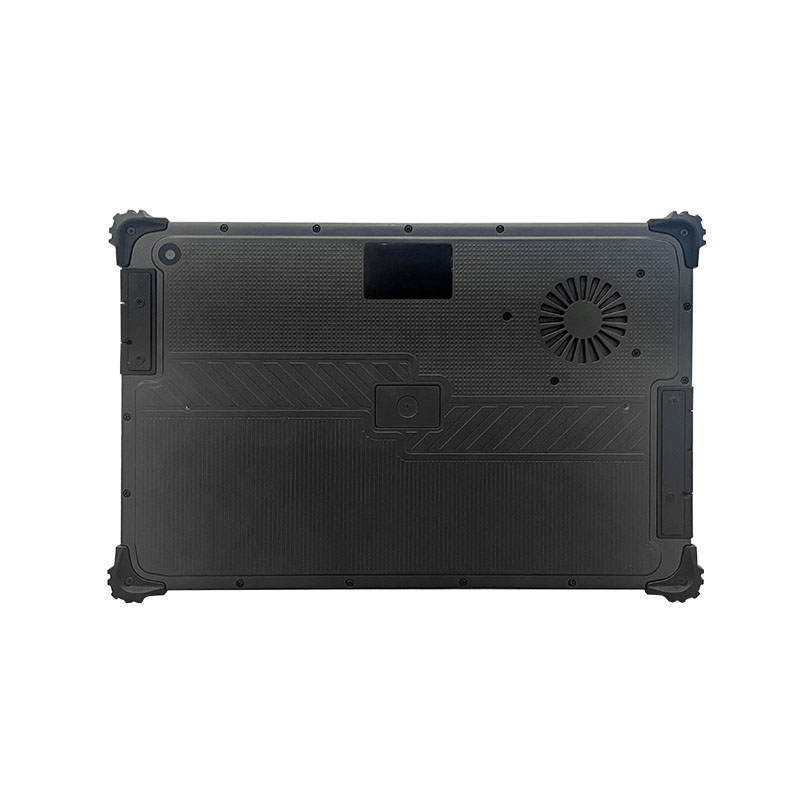

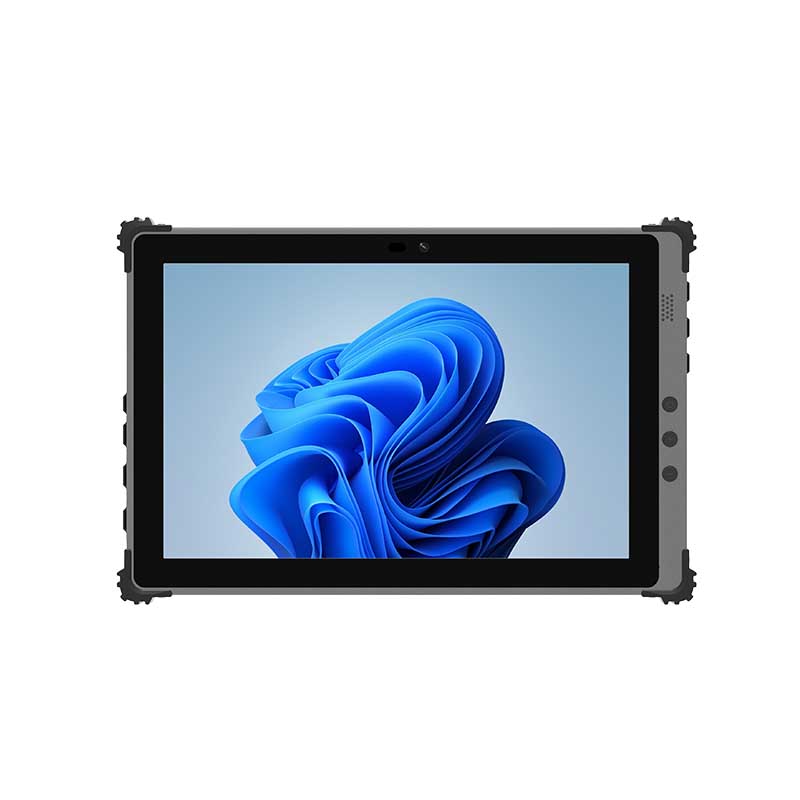

| Product Form | Form Factor | F9M Rugged Tablet PC |
| Dimensions | 271.3*179.3*20.6mm |
| LCD | Screen Size | 10.1" |
| Screen Resolution | 1200×1920 (IPS+HD+300ANSI) (Standrd) |
| TP | Touch Module | G+G Multi-Touch (10 Points) |
| Battery | Type | Rechargeable lithium polymer |
| Capacity | 809052 7.6V/5900mAh |
| Working Time | Over 4 hours (FHD local video display) |
| System Hardware Configuration: |
| Type | Details | Descriptions |
| CPU | Type | Intel i5-1235U |
| Speed | up to 4.4GHz |
| GPU | Type | Intel Iris Xe Graphics |
| Memory | Capacity | 16GB LPDDR4x 4266MHz |
| Storage | eMMC | 256GB |
| SSD | Optional (m.2) |
| Camera | Front | 5M |
| Rear | 5M |
| Speaker | Built-in | 8Ω/1W*2pcs with water proof |
| Micphone | Built-in | Yes |
| G-sensor | Built-in | Yes |
| Light-sensor | Built-in | Optional |
| Network Connections: |
| Type | Details | Descriptions |
| WIFI | WIFI+BT | WiFi6，802.11ax无线协议+BT 5.1 AX201D2W |
| 4G LTE | Optional | Optional (M.2) |
| GPS | BD2/GPS/Glonass (Choose two of the three) | Optional |
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan |

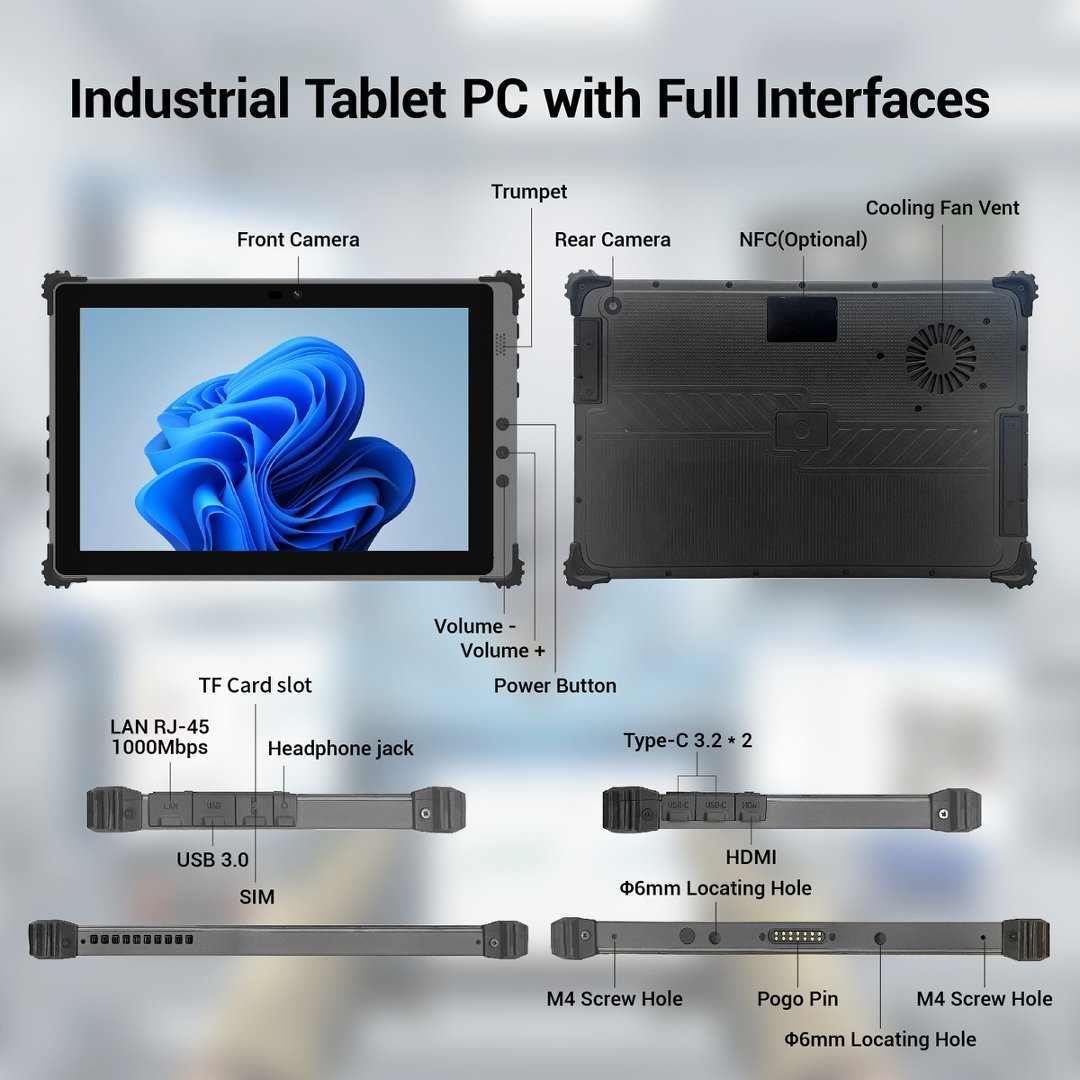

| Interface Configuration: |
| Type | Details | Descriptions |
| Type-C | Type-C 3.2 | ×2pc |
| USB Interface | USB3.0 | ×1pcs |
| SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) |
| SIM Card Slot | SIM Slot for 4G LTE | ×1pc |
| Audio Jack | 3.5mm standard headphone+Microphone | ×1pc |
| Button Switch: |
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| Main Accessories: |
| Type | Details | Descriptions |
| Power adapter | 20V 3A PD | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: |
| Operating System | Windows 11 Pro or above | Yes (Officoal Windows license is Optional) |
| Environment: |
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
| Certification: |
| CE | CE-Red | Optional |
