| System Physical Standard Configuration: |
| Type | Details | Descriptions |
| Product Form | Form Factor | 8 inch Android Rugged Tablet PC |

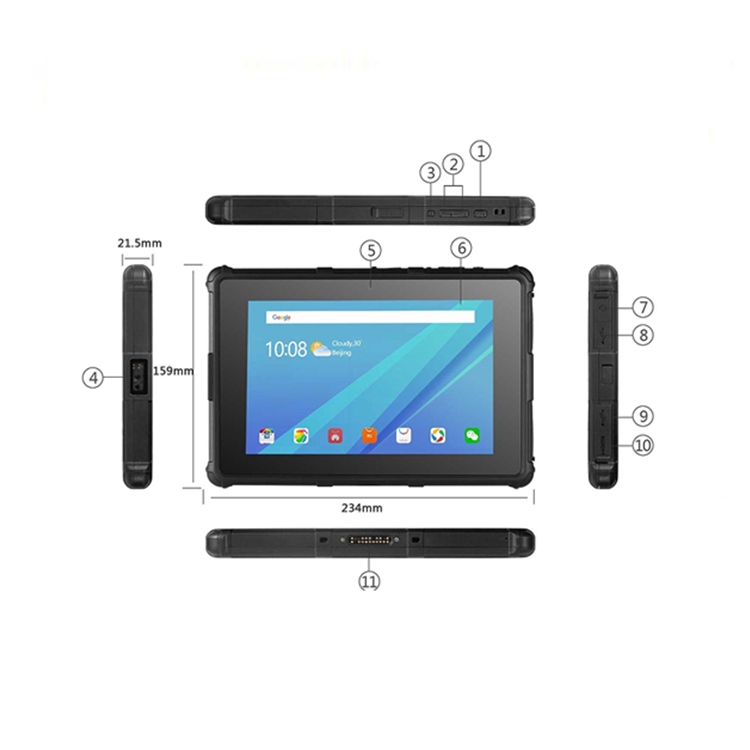

| Dimensions | 234×159×21.5mm |
| Weight | 0.7KG |
| LCD | Screen Size | 8" |
| Screen Resolution | 800×1280 (IPS+300ANSI) |
| TP | Touch Module | G+G Multi-Touch |
| Battery | Type | Rechargeable lithium polymer |
| Capacity | 5500mAh/3.7V |
| Working Time | Over 6 hours (FHD local video display) |
| System Hardware Configuration: |
| Type | Details | Descriptions |
| CPU | Type | Rockchip RK3566 Cortex A55 Quad-Core |
| Speed | 1.8GHz |
| GPU | Type | Mali-G52 |
| Memory | Capacity | 2GB /4GB |
| Storage | eMMC | 32GB/64GB |
| Camera | Front | 2M |
| Rear | 5M |
| Speaker | Built-in | 8Ω/1W with water proof x2pcs |
| Micphone | Built-in | Yes |
| G-sensor | Built-in | Yes |
| Network Connections: |
| Type | Details | Descriptions |
| WIFI | WIFI Module: | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band |
| Bluetooth | BT Module: | Bluetooth4.2 |
| QR code Scanners | Optional | Optional |
| NFC | Optional | Optional |
| GPS | BD2/GPS | Optional |
| Fingerprinter | Capacitive fingerprint sensor | Optional |
| 4G LTE | M.2 slot | Optional |
| Interface Configuration: |
| Type | Details | Descriptions |
| USB Interface | USB3.0 | ×1pc |
| Type-C (2.0) | ×1pcs (Base on USB2.0; DC-IN AND data transmit) |
| SD / TF Card reader | TF Card reader | ×1pc (up to 256GB) |
| SIM Card Slot | SIM Slot for 4G LTE | Optional |
| Audio Jack | 3.5mm standard | ×1pc |
| HDMI | Micro HDMI 2.0 | ×1pc |
| Video output through HDMI | Up to 4K@60fps |
| Button Switch: |
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| Hotkeys | Control QR Scanner | ×1pc |
| Main Accessories: |
| Type | Details | Descriptions |
| Power adapter | DC 5V/3A (Type-C) | ×1pc |
| User's Manual | User's Manual | ×1pc |

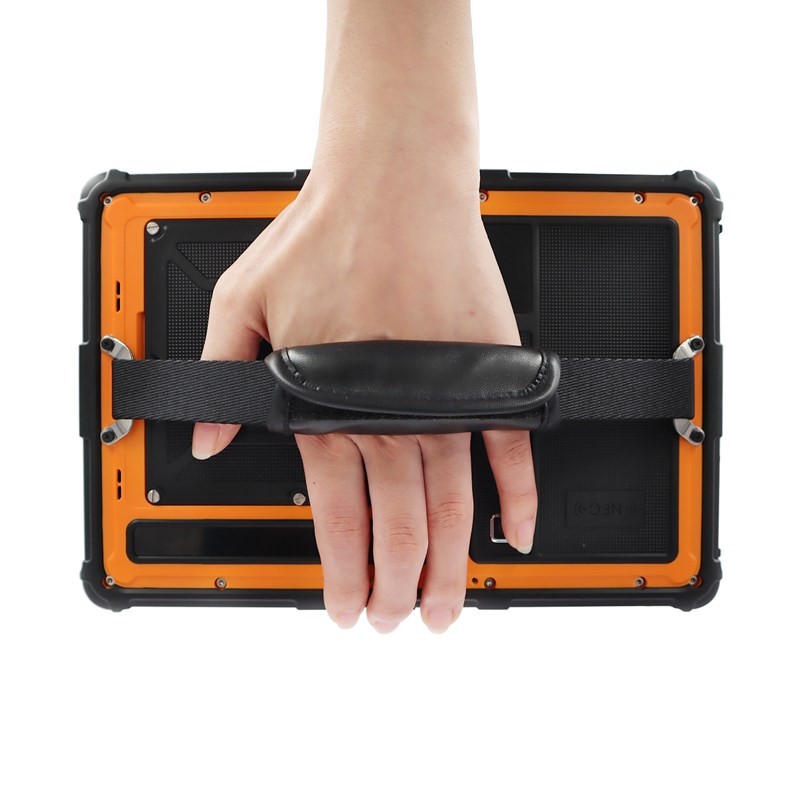

| Handle Straps | Optional | Optional |
| Extension Docking | USB2.0×1pc ; DC IN × 1pc | Optional |
| Software Configuration: |
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Operating System | Andorid11 | Yes |
| Linux | Test by end user |
| Environment: |
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
| Certification: |
| IP67 | IP67 Certification | Yes |
