Complete application solution of Higole industrial panel in self-service coffee machine
The self-service coffee machine is a commercial terminal that operates 24/7 without human supervision, with high temperature, high humidity, multiple oil mist, high-frequency touch, and multi peripheral linkage. Consumer grade tablets/displays cannot operate stably for a long time; Industrial touch panels (industrial all-in-one machines/industrial display touch modules) are the core hardware for machine interaction, device control, and remote operation. They are divided into two forms: split industrial display panels and integrated industrial touch all-in-one machines, covering the entire application chain of human-computer interaction, device control, and operation and maintenance management.
The self-service coffee machine scenario has a hard and special requirement for industrial panels, which is different from ordinary household screens. The coffee machine environment has four harsh working conditions, which are also the core reasons for choosing industrial panels:
1: Temperature, humidity, and water vapor oil mist: Extraction produces high-temperature steam, milk foam water mist, coffee splashes, and oil stains. The front panel is required to be IP65 dustproof and waterproof, with a sealed fully enclosed structure to isolate water vapor intrusion; The working temperature range is -10 ℃~60 ℃, and there is no screen flickering or fogging when switching on and off the machine.
2: Long term uninterrupted operation: Office buildings, parks, and shopping mall equipment operate year-round, with an industrial backlight lifespan of ≥ 50000 hours. Passive heat dissipation without fans prevents dust from blocking heat dissipation and causing crashes. The failure rate is reduced by more than 27% compared to consumer screens.
3: High frequency public touch: thousands of clicks per day, panel made of Mohs 7-grade tempered glass, with a touch life of 50 million times; Wet hands and disposable gloves can still accurately identify and resist accidental contact with oil stains.
4: Strong electromagnetic interference: The coffee machine is equipped with a grinding motor, heating tube, and water pump, which generate electromagnetic noise when starting and stopping; Industrial panels with isolation circuits and EMC anti-interference design will not experience touch drift or screen flicker.
5: Multi peripheral expansion: Requires docking with barcode scanner, NFC card reader, 4G/WiFi, weighing sensor, temperature control module, receipt printing, door lock, industrial panel comes with RS232/RS485/USB/Ethernet port, no additional adapter board required.

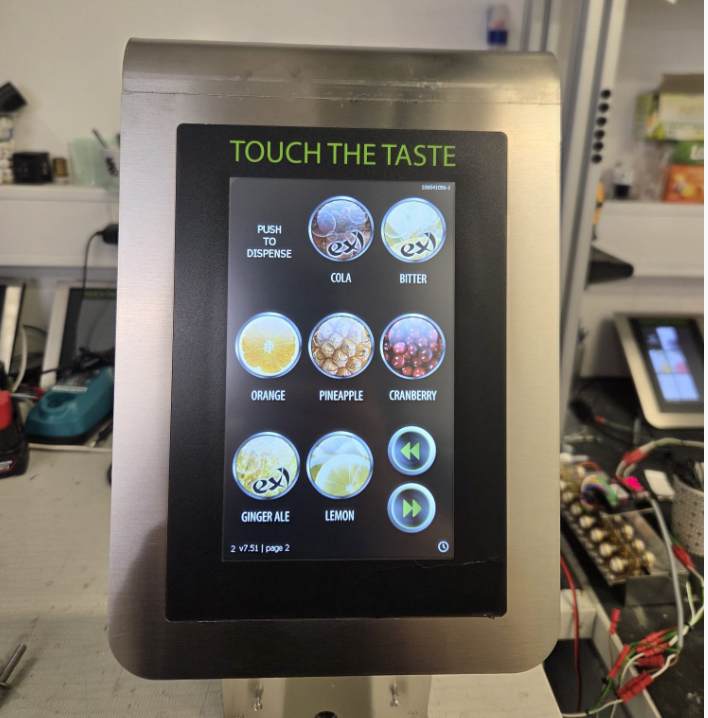

Higole industrial control panel specially customized and designed for self-service coffee machine standards
7-inch to 15.6-inch small desktop all-in-one computer; 7-inch 1024 × 600 (industry standard); 15.6-inch 1920 × 1080 high-end vertical display, 10 point touch screen, optional four wire resistive screen for heavily oily scenes, supports thick glove operation, front panel IP65, tempered glass, fully laminated process to prevent fogging inside the screen, indoor 300-400cd/㎡; Street facing/semi outdoor ≥ 600cd/㎡ high brightness, with photosensitive automatic dimming, forced fanless metal passive heat dissipation, eliminating steam and dust accumulation faults, window and Android embedded solution, starting with 4G memory+128G storage, supporting APP customization and development, fully meeting industry application needs.
