Application:
IP67 Waterproof Rugged Industrial Tablet IP67 Waterproof Rugged Industrial Tablet

IP67 Waterproof Rugged Industrial Tablet


Model No.: F7G Plus
Screen: 10.1 inch IPS 10 points touch
CPU:Intel Celeron Quad Core N4120
Frequency:1.1GHz ~ 2.6GHz
Screen:1920*1200
Resoltuion: 600nits
RAM:8GB+128GB

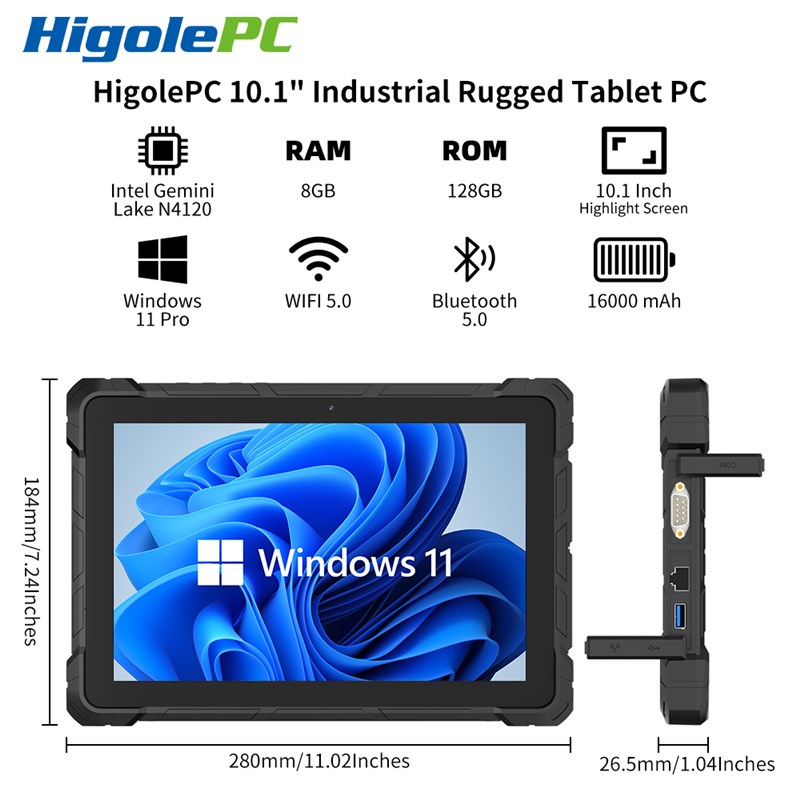

Dimensions:280×184×26.5mm
share:
  • Description
  • Specification
  • Accessories
  • IP67 Rugged Tablet PC

  • System Physical Standard Configuration:
    TypeDetailsDescriptions
    Product   FormForm FactorIP67 Rugged Tablet PC
    Dimensions280×184×26.5mm
    Weight1.15KG
    LCDScreen Size10.1"
    Screen   Resolution1200×1920 (IPS+FHD+600ANSI)    (Standrd)
    800×1280 (IPS+HD+300ANSI)
    TPTouch Module G+G Multi-Touch; Used Gorilla glass from Corning
    Battery TypeRechargeable lithium polymer
    Capacity8000mAh/7.6V
    Working   Time8 hours (FHD local video display)
    System Hardware Configuration:
    TypeDetailsDescriptions
    CPUTypeIntel Gemini lake N4120 (Quad-Core)
    Speed1.1GHz ~ 2.6GHz (N4120)
    GPUTypeIntel UHD 600 Graphics
    MemoryCapacity8GB LPDDR4
    StorageeMMC128GB
    SSDOptional (Mini PCI-E slot)
    CameraFront 2M
    Rear 5M
    SpeakerBuilt-in8Ω/1W*2pcs with water proof
    MicphoneBuilt-inYes
    G-sensorBuilt-inYes
    Light-sensorBuilt-inOptional
    Network Connections:
    TypeDetailsDescriptions
    WIFIWIFI Module: Intel AC3165WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
    BluetoothBT Module: Intel AC3165Bluetooth4.2
    4G LTEOptionalOptional (Mini PCI-E slot)
    QR code ScannersStandardYes
    GPSBD2/GPS/Glonass (Choose two of the three)Yes
    NFCOptionalYes
    FingerprinterOptionalYes
    RFIDUHF bandOptional
    Ethernet NetworkRJ-451000Mbps Gigabit Lan
    Interface Configuration:
    TypeDetailsDescriptions
    Type-CType-C 3.1 (Video   Out+Data+Power)×1pc
    USB InterfaceUSB3.0×2pcs
    SD / TF Card   readerTF Card reader×1pc (up to 256GB)
    SIM  Card SlotSIM Slot for 4G LTE×1pc
    Audio Jack 3.5mm standard   headphone+Microphone×1pc
    HDMIMicro HDMI 2.0×1pc (Output 4K@60fps UHD video)
    COM PortDB9 (RS232)×1pc
    Button Switch:
    TypeDetailsDescriptions
    PowerOn/Off×1pc
    VolumeDown/UP×1pc
    HotKeyHot Key for QR   Scanner ×1pc
    Forced outagePower restart when push   restart button×1pc
    Main Accessories:
    TypeDetailsDescriptions
    Power adapterDC 12V/3A×1pc
    User's ManualUser's Manual×1pc
    Handle StrapsStandard×1pc
    Extension DockingUSB2.0; Power   charging;  RJ45; RS232Optional
    Vehicle BracketUSB2.0; Power   charging;  RJ45; RS232Optional
    Software Configuration:
     TypeDetailsDescriptions
    Power on FunctionBy Power Button or Auto   Power onOptional
    Wake up on LanWake up on Lan by RJ45Yes
    PXEPreboot Execution   EnvironmentYes
    SecurityTPM2.0 (Hardware)   containedYes
    Operating SystemWindows 10 ProYes
    Ubuntu   LinuxTest by end user
    Environment:
    TemperatureOperation Temperature-10oC ~ 55oC (1080p or 4K local   video display)
    Storage   Temperature-20oC ~ 70oC  (Restore to Operation Temperature 2hr   before use)
    HumidityOprating Humidity35% ~ 80% relative humidity, Non-condensing
    Storage   Humidity20% ~ 93% relative humidity, Non-condensing
    Certification:
    IP67IP67 CertificationYes
    CECE-RedYes
    MIL-STD-810GMatch the military   standard of USAYes
