Core parameters and application value of self-service coffee machine industrial panel
The self-service coffee machine is mainly designed to enhance user experience, with smooth multi touch, visual menu, integrated multi payment, lower operating barriers, and improve order conversion; Stable operation of industrial panels, industrial grade waterproof, wide temperature range, anti-interference, 24-hour long standby, significantly reducing the frequency of after-sales maintenance; Essentially achieving unmanned commercial operations, local control+remote cloud data integration, without the need for dedicated personnel on duty, saving labor, replenishment, and inspection costs; Expand commercial value-added space, split screen advertising, membership marketing, sales big data analysis, and explore point revenue; Simplify the integration of the entire machine, reduce the number of components in the integrated industrial machine, and shorten the development cycle of the entire coffee machine.
1: Industrial control panel with a size of 7-21 inches: small desktop; 7-inch 1280 * 600 resolution screen (industry standard); 15.6-21 inch 1920 × 1080 high-end vertical;
2: The mainstream of touch control is PCAP capacitor 10 point touch control; In scenarios with extremely heavy oil pollution, a four wire resistive screen can be selected, supporting thick glove operation
3: The front panel adopts IP65 protection, Mohs 7 tempered glass, and full lamination process to prevent fogging inside the screen
4: The brightness is basically 400-500cd/㎡ indoors; Street facing/semi outdoor ≥ 800cd/㎡ high brightness, with photosensitive automatic dimming
5: Forced fanless metal passive heat dissipation is used for heat dissipation to prevent steam and dust accumulation faults
6: The system mainly adopts Android and Windows embedded technology (simple development), starting with 4G memory and 64G storage, and supports customized APP development

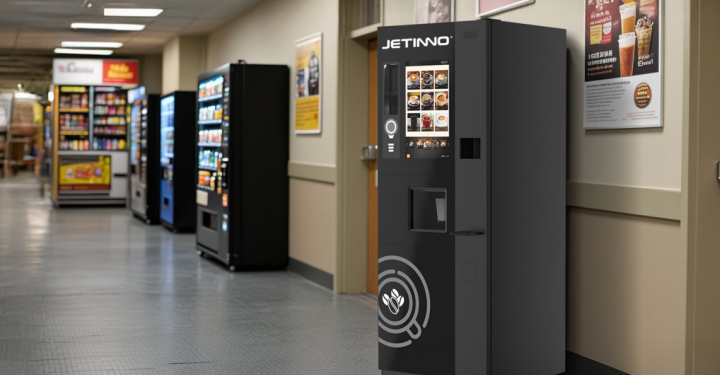

The self-service coffee machine industrial panel is suitable for vertical multi drink self-service coffee machines in shopping malls, parks, and subways (90% of commercial models on the market use it). Higole's 7-21 inch wall mounted industrial all-in-one pc are widely used in self-service coffee machines, supporting user customization and achieving full functionality and market coverage.
